Library
Reusable components for authored details
Browse the reusable model catalog that feeds editor scenes, published details, and preflight geometry review.
Reusable assets
18
Components ready to inspect, reuse, and place into saved detail scenes.
Featured assets
6
Highlighted components that make good starting points for new details.
Categories
6
Covering concrete and structural, firestopping, framing, and more.
Component catalog
Inspect reusable geometry before it enters a published detail
Every asset gets its own inspection route so teams can verify form, orientation, and source files before the component is reused in authored conditions.
Live catalog. Published details, component metadata, and engagement data are all coming from the current production content set.
Concrete and structural

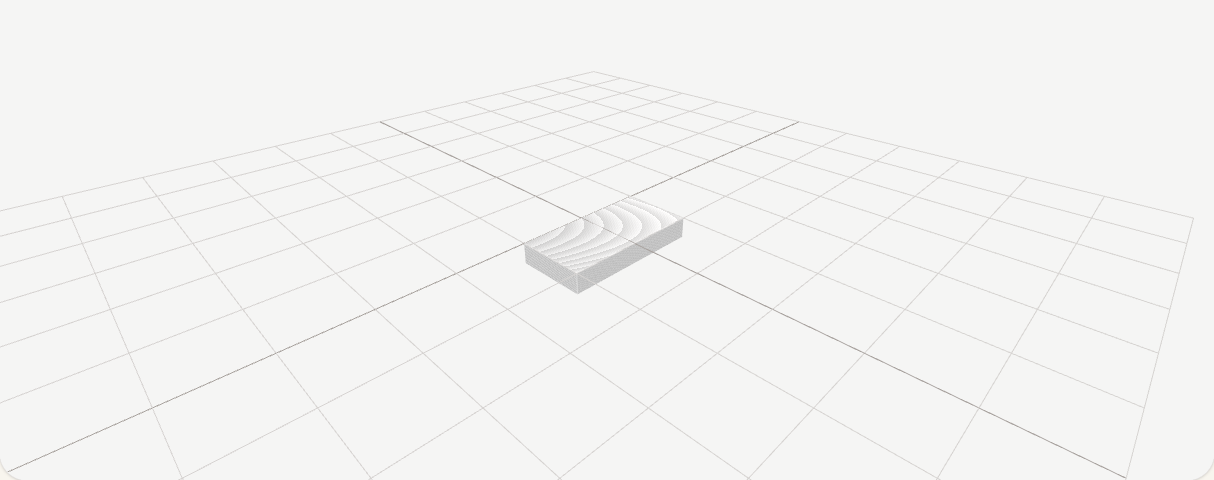

ConcSlab.glb
ConcSlab
Concrete slab model used in slab, penetration, and structural support detail studies.

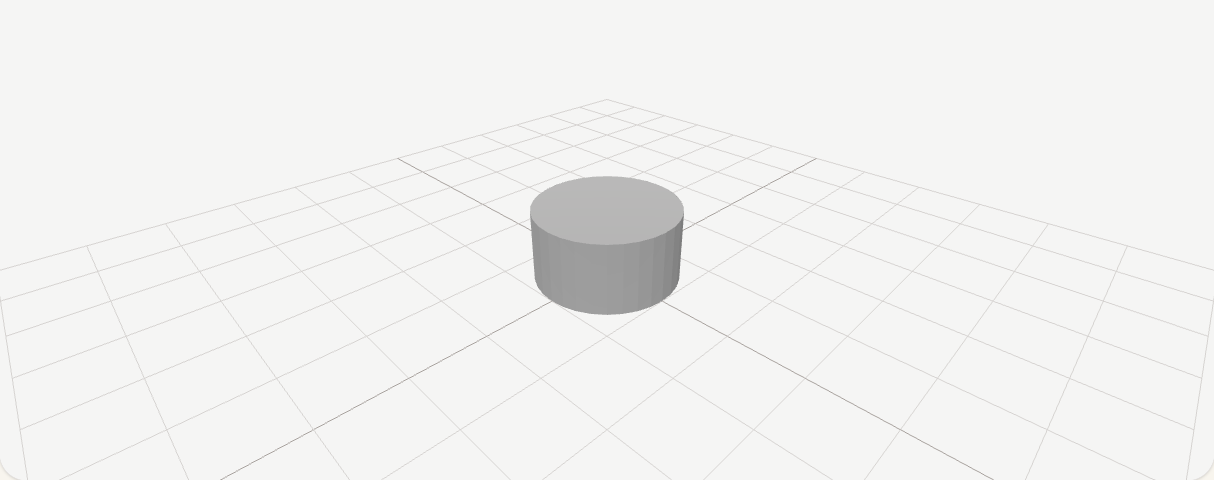

Concrete and structural
Cylinder.glb
Cylinder
Generic cylindrical primitive for placeholder geometry and services coordination examples.

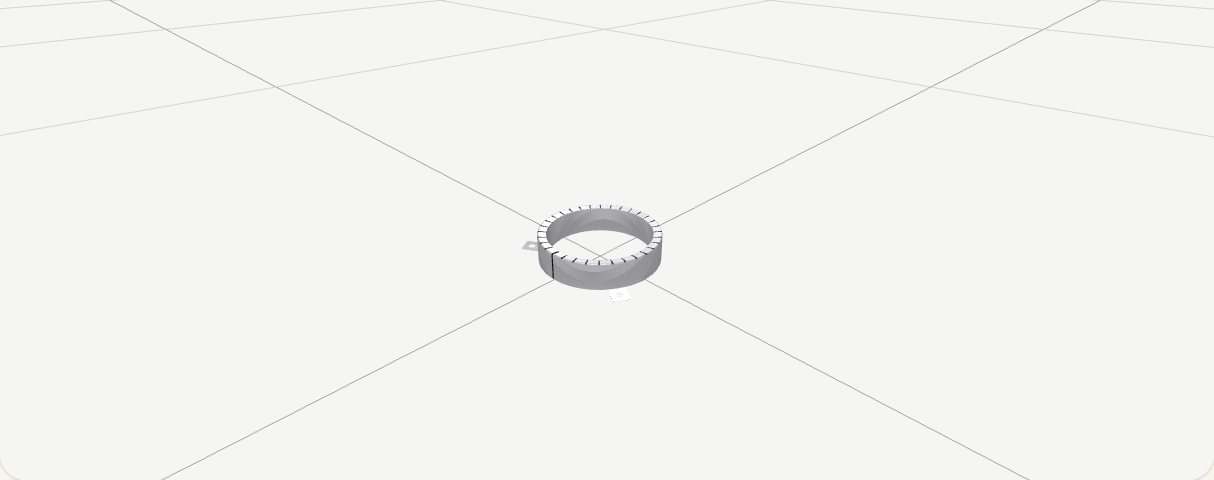

Firestopping
Fire Collar SL 110.glb
Fire Collar SL 110
Fire collar component for penetration and passive fire protection detail reviews.

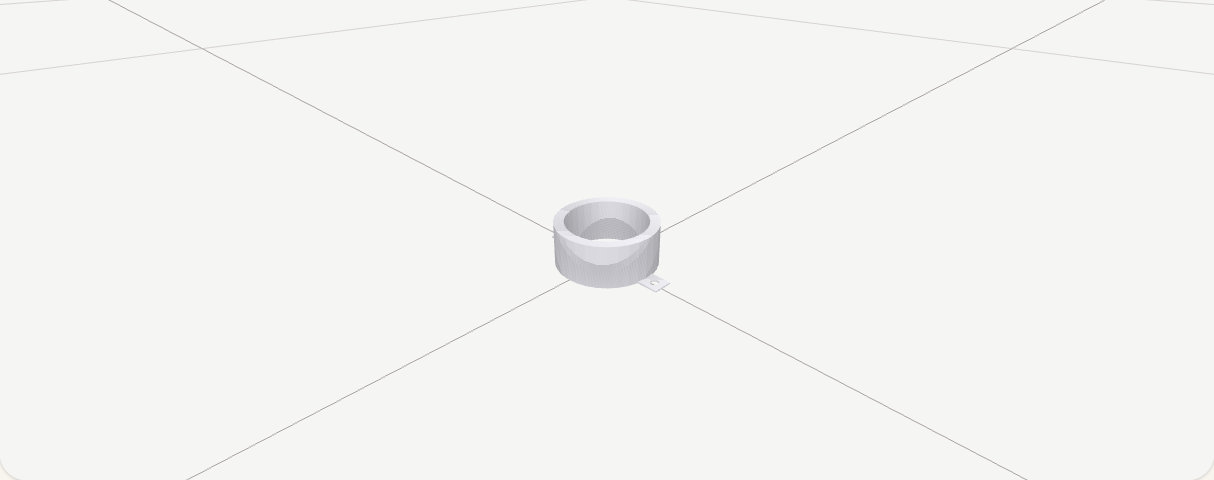

Firestopping
Fire Collar SL 55.glb
Fire Collar SL 55
Compact fire collar component for smaller service penetrations.
Framing
Fixing_ConcScrew32mm.glb
Fixing ConcScrew32mm
Concrete screw fixing used in anchored connection and installation-sequence examples.
Services

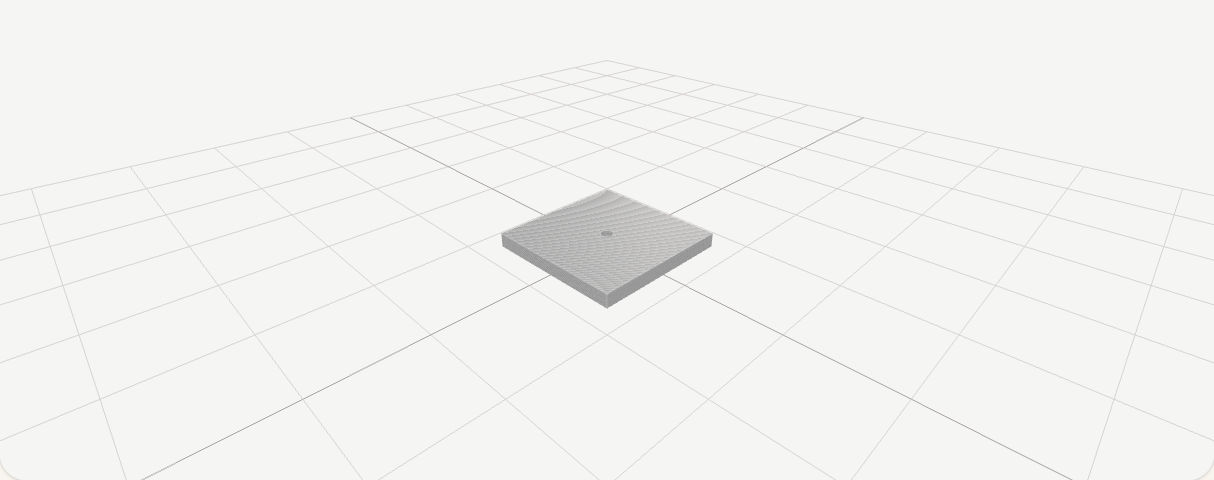

Floor-100 Penetration.glb
Floor 100 Penetration
Service penetration object for floor and firestopping conditions.
Envelope and lining

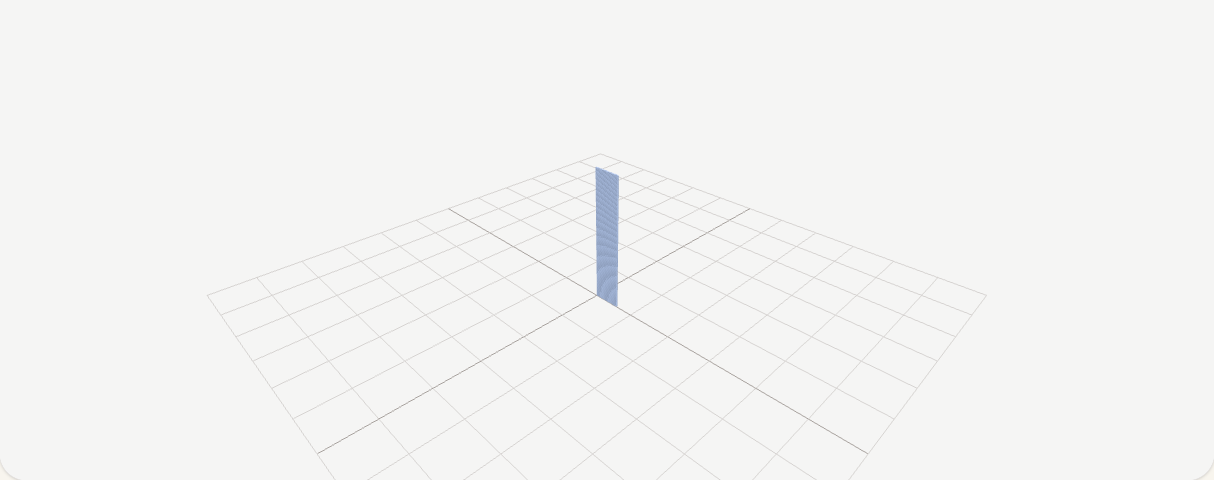

GIB_Barrierline.glb
GIB Barrierline
Fire-rated lining component used in wall build-up and compliance-focused details.
Envelope and lining

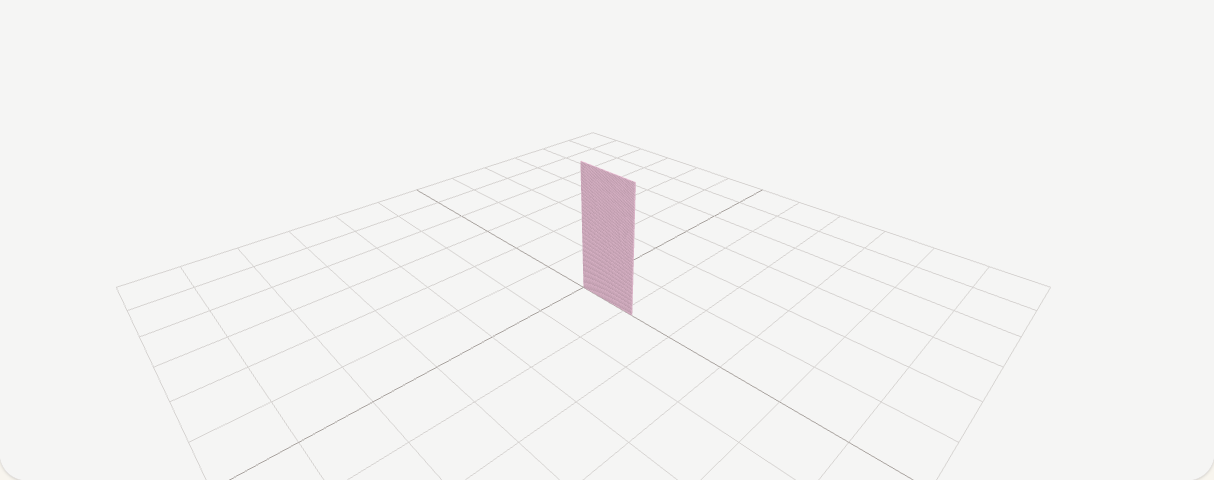

GIB_Weatherline.glb
GIB Weatherline
Exterior sheathing component used in envelope and facade support conditions.

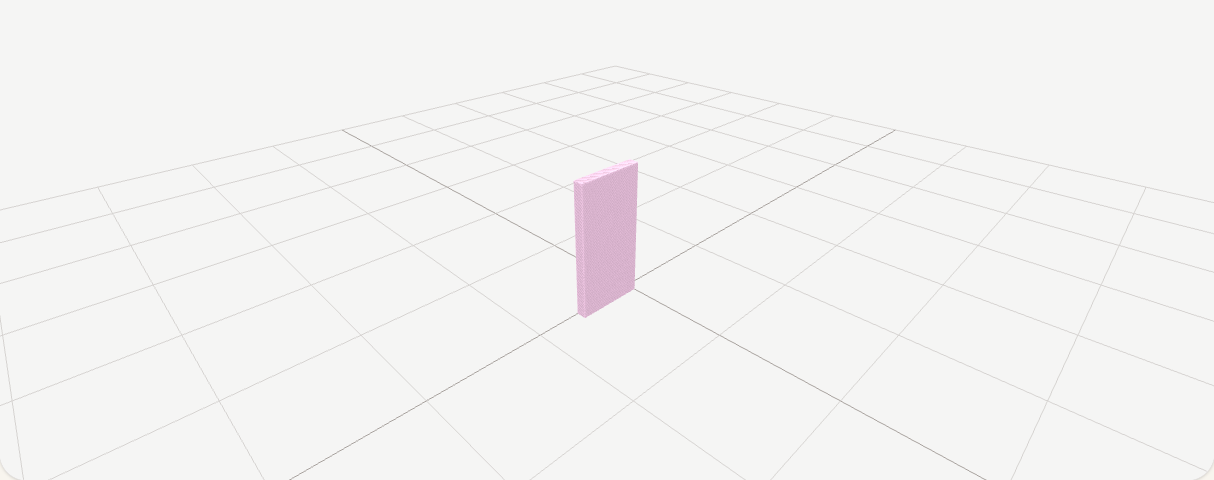

Envelope and lining
Insulation.glb
Insulation
Generic insulation body for layered assembly and thermal envelope communication.
Services

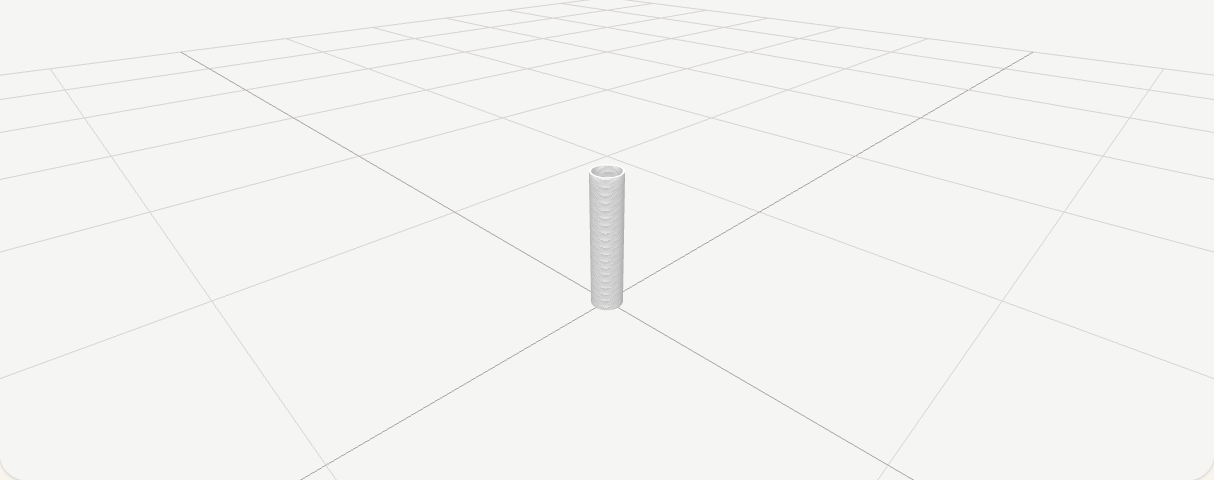

PVC Pipe 100 dia.glb
PVC Pipe 100 Dia
PVC pipe component for service routing and penetration review scenarios.

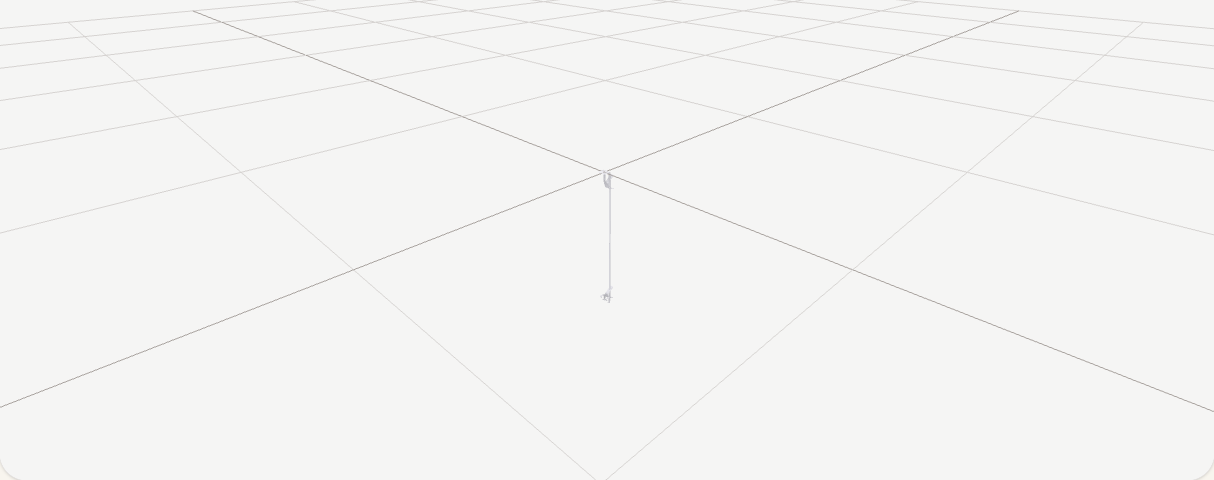

Framing
RondoHanger.glb
RondoHanger
Suspended ceiling hanger component for coordination and installation review.
Framing
RondoRail-127.glb
RondoRail 127
Rondo rail section for suspended framing and ceiling-support details.
Firestopping
RyanFire Mastic Sealant.glb
RyanFire Mastic Sealant
Fire-rated sealant component for service penetrations and joint treatment.
Framing

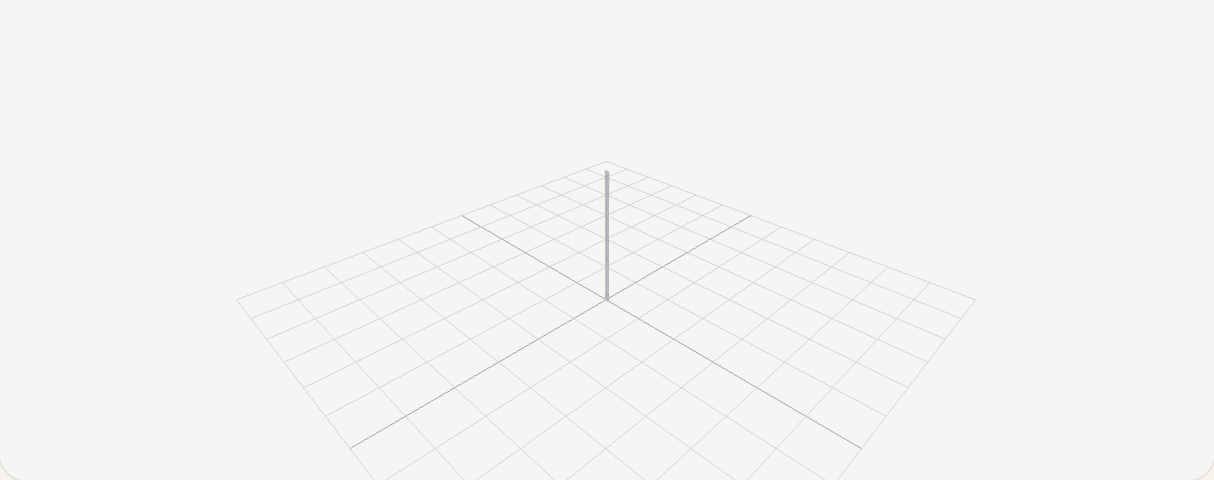

SteelStud_92x32.glb
SteelStud 92x32
Cold-formed steel stud used in wall framing and buildable detail assemblies.
Framing

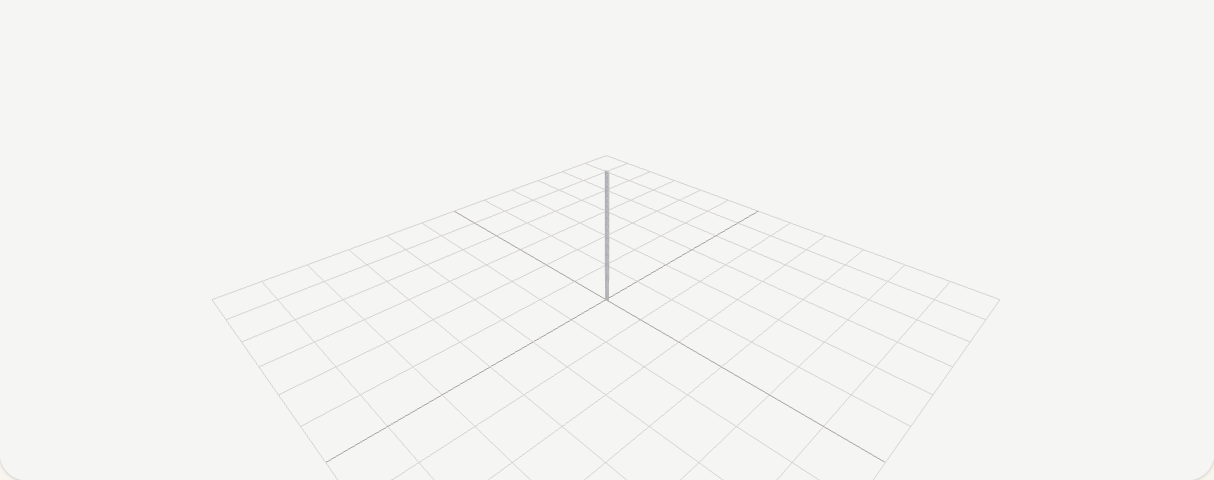

SteelStud_94x32.glb
SteelStud 94x32
Cold-formed steel stud used in structural support and partition details.

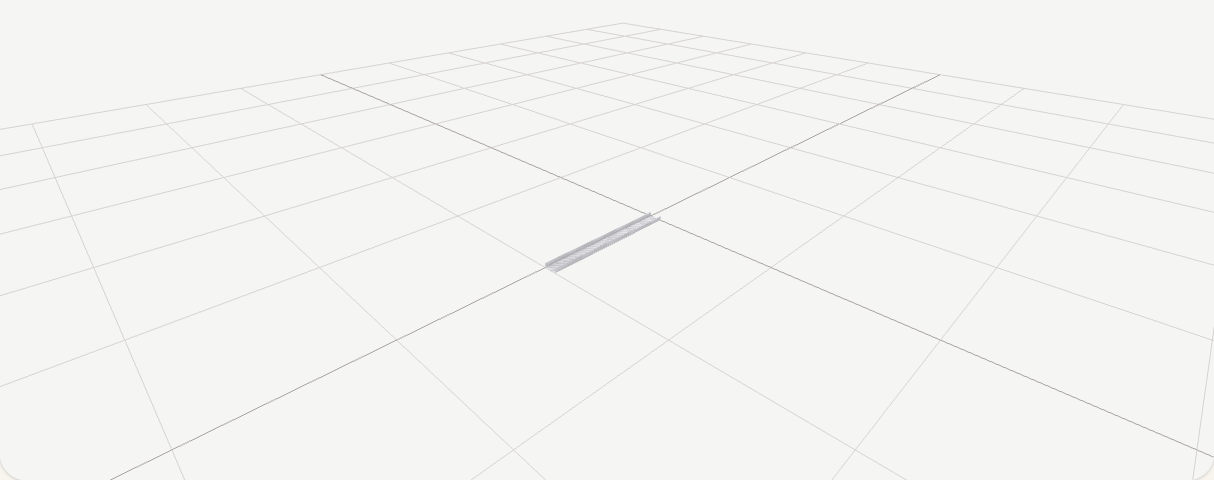

Framing
SteelStudTrack_94x32.glb
SteelStudTrack 94x32
Track component paired with steel stud framing conditions.
Workflow fit
Use the library as the component source of truth
The library is most useful when teams can move cleanly between component inspection, authored detail work, and published viewer review.
Inspect before reuse
Open a component route, check geometry in the browser, and confirm the source file is the one you want to carry forward.
Author from known parts
Pull vetted components into the editor so assembly work starts from a cleaner baseline than ad hoc model imports.
Trace components into details
Move from reusable part to published condition without losing the thread between component source and final review surface.
